Mechanics Meets Servo Technology
Experience the perfect synergy of mechanics and servo technology with the GRM 80P Hybrid stamping and forming machine. Delivering unmatched performance and flexibility, this advanced system enables you to produce precision stamped and formed parts and assemblies with exceptional productivity and cost-efficiency. Take your manufacturing to the next level with the cutting-edge technology of the GRM 80P Hybrid.
Machine Details

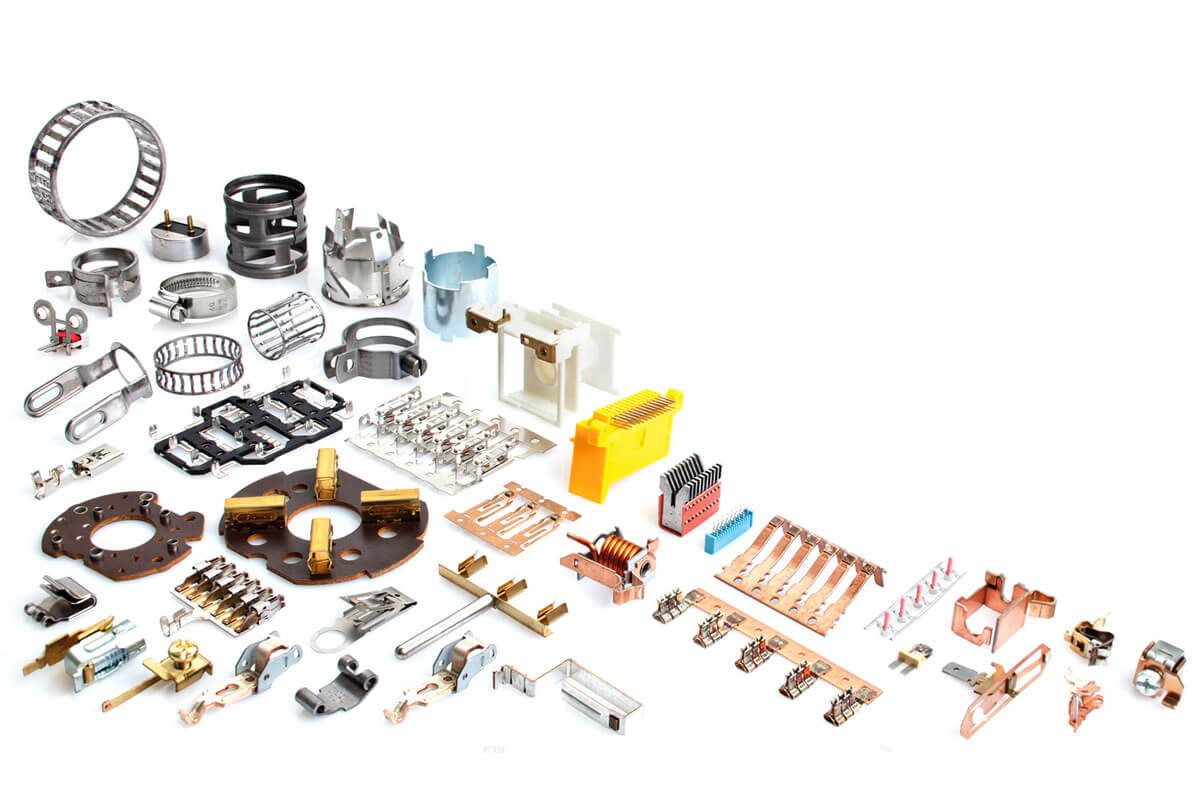

Powerful machining system for flexible mass production of larger stamped and formed parts as well as sub-assemblies
- Easy integration of servo axes for easier tooling solutions (high flexibility in case of variant diversity)
- Maximum processing room due to spatial separation of stamping and forming operations
- More than 2,100 mm (82”) machining path with linear tools

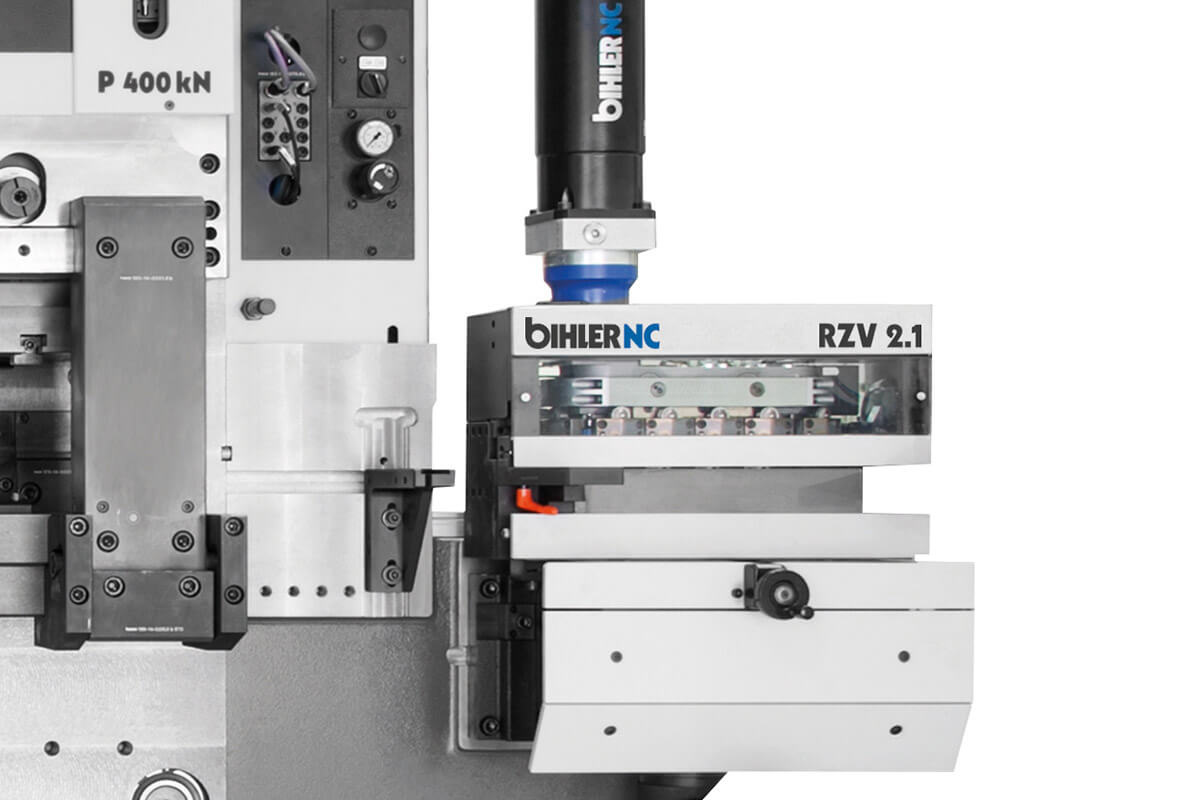

- Rigid 400 kN press for high-performance carbide tools
- Large center aperture for flexible integration of NC central mandrels (complete set-up from machine front side)
- Easy and secure operation with VariControl system
Stroke rate | Variable drive control from 5 to max. 250 1/min. |
Max. nominal forming capacity 90 kN, max. stroke 95 mm | |
NC feed: any feed length, mech. feed: max. 500 mm, with feed cycle reduction | |
Material | Max. strip thickness: 6 mm, max. strip width 80 mm, max. wire Ø 6 mm (depending on material and process) |
Width 3,930 mm x depth 1,595 mm x height 2,220 mm | |
Weight | Approx. 4,500 kg (without tooling) |
