Efficient Operation
The BIMERIC Modular servo production and assembly system is the ultimate solution for efficient component manufacturing and assembly. With its standardized machine and tooling technology, it delivers significant cost savings, drastically reduces time-to-market, and ensures exceptionally short setup times.
From raw materials to ready-to-install assemblies, the system’s high-performance production flow guarantees superior manufacturing quality. Its state-of-the-art control technology ensures seamless operation and outstanding process reliability.
Designed for maximum flexibility, the BIMERIC Modular adapts effortlessly to your evolving production needs, making it the ideal choice for businesses seeking efficiency, scalability, and precision.
Machine Details
Modular, standardized servo production and assembly system for highly efficient component and assembly production
- Standardized, pre-mounted process modules for feeding, stamping and forming (designed for 80 mm strip width)
- PLUS-empty locations for further processing modules and individual units
- Full compatibility with LEANTOOL linear system:
up to 70 % standard tool parts - Very fast and 100% reproducible setup of tool modules
- Perfectly designed for small and medium batch sizes and large variant diversity
- Flexibly scalable for future tasks
Variable drive control up to max. 250 1/min. | |
Max. nominal forming capacity 31 kN | |
Servo feed: Any feed length | |
Max. strip thickness: 4 mm, max. strip width 80 mm, max. wire Ø 4 mm (depending on material and process) | |
Depending on type | |
Weight | Depending on type |

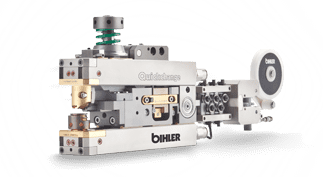

Standardized Process Modules
- Pre-mounted 400-kN screw press
- High cycle rates of up to 250/min.
- Designed for standardized Meusburger cutting frames SBP and SBH 400
- Module length: 750 mm
- Pre-mounted material feeding system RZV 2.1 for slip-free, precise feeding and positioning of strip and wire material
- Optional units: strip guards, strip oilers, straighteners, standardized
strip guiding blanks - Module length: 2,000 mm
Modules
