MULTICENTER: Revolutionizing Versatility and Productivity
Today’s fast-paced markets demand constant innovation and an ever-expanding variety of products. Meeting the challenge of cost-effectively manufacturing complete assemblies has become the gold standard across industries. Bihler’s MULTICENTER machines are purpose-built to deliver unmatched flexibility and productivity, setting a new benchmark in manufacturing technology.
With MULTICENTER, you gain a multi-functional powerhouse capable of seamlessly integrating a variety of processing techniques—stamping, bending, forming, welding, laser welding, assembly, threading, screwing, and more—into a single automated system. Designed for maximum versatility, each machine boasts two fully functional workstations: a radial and a linear processing side. These can operate independently or in unison, offering unparalleled adaptability to produce individual components or complete assemblies with ease.

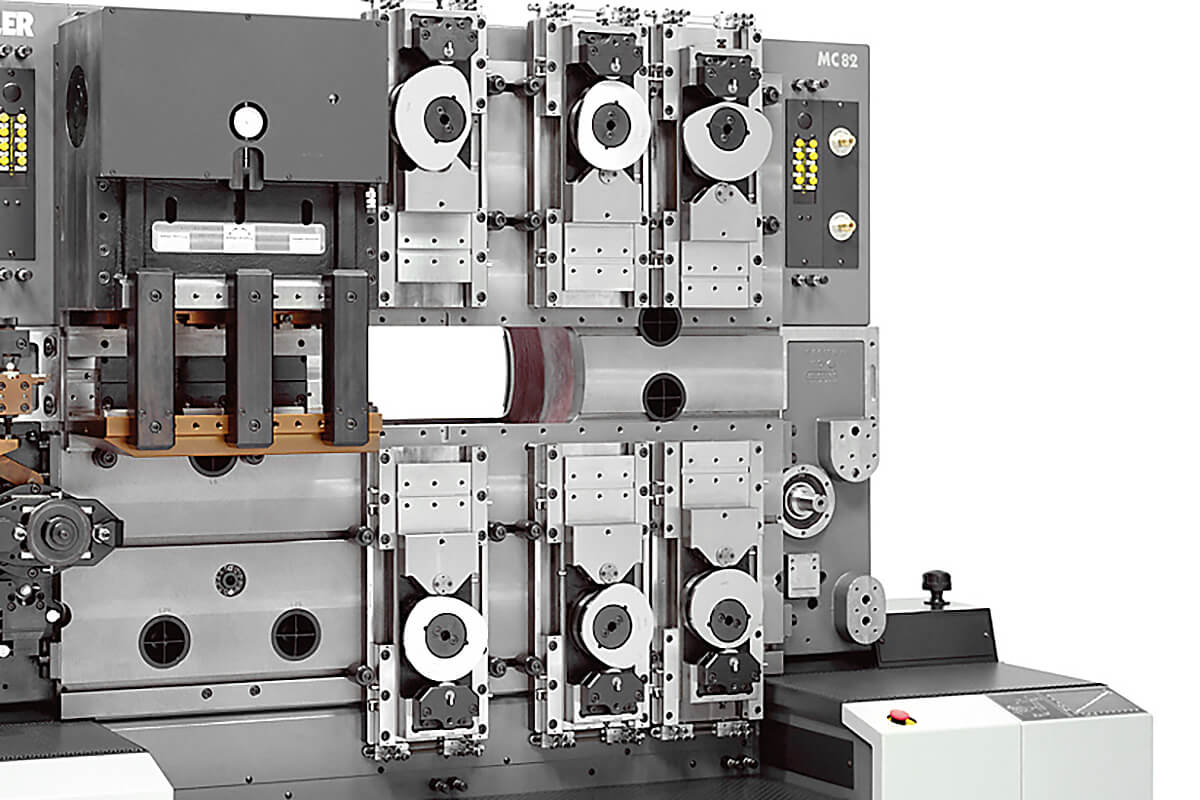

Machine Details
Powerful machine system with two processing faces for mass production of larger stamped and formed parts and sub-assemblies
- Highly productive manufacture of complex products with simultaneous production of the individual parts
- High production speeds up to 250/min
- Large opening in the center for variable transverse movements
- High degree of availability owing to rapid tool changeovers and short resetting times
- Free access to all tool stations facilitates setting up, adjustment and servicing
- Easy and secure operation with VariControl VC 1
Stroke rate | Variable drive control from 5 to max. 250 1/min. |
Max. nominal forming capacity 90 kN, max. stroke 95 mm | |
Mech. feed: max. 200 mm or 500 mm, (with feed cycle reduction), servo feed: any feed length | |
Material | Max. strip thickness: 6 mm, max. strip width 80 mm, max. wire Ø 6 mm |
Width 3,140 mm x depth 2,250 mm x height 2,390 mm | |
Weight | Approx. 6,000 kg (without tooling) |
